Tiled Torus thumbnails
tree :: Antiprism Examples and Visual Reference > Demonstration Commands > Tiled Torus Image List

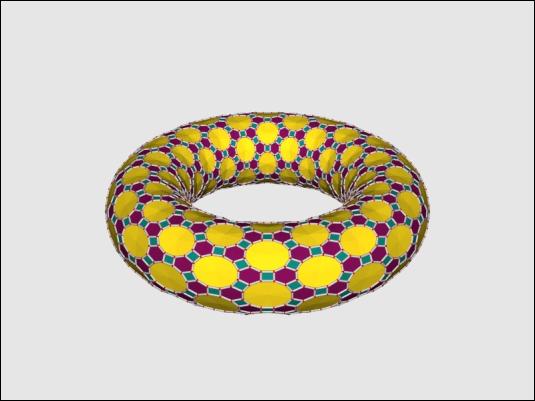

Description : unitile2d maps polygon tilings onto surfaces. In this case a 4,6,12 tiling is mapped onto a torus. The polygons are coloured according to their number of sides, and the colours are looked up in the spread colour map. The map is shifted by 8, arrived at by experimenting until I found a colour combination I liked. The antiview -t no_triangulation option improves the display of the non-planar polygons over the triangulated default.

View this model with the command

unitile2d -s t -l 90 -w 30 11 | off_color -f N -v 1.0,0.0,0.0 -m spread+8  | antiview -v 0.03 -e 0.025 -E grey80 -t no_tri

  previous     Medium    Large    next
tiled_torus.jpg  21KB JPEG image, 535 x 401 pixels
