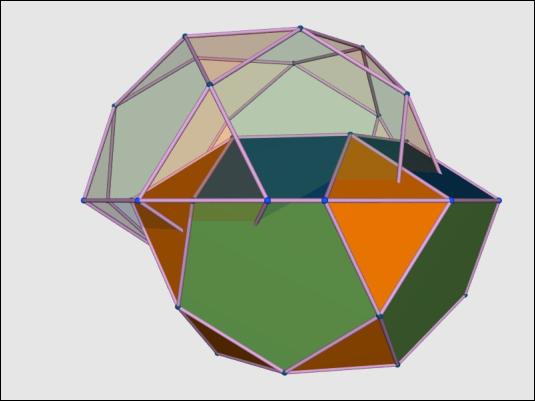

Description : The -I option specifies reflection, or inversion, in the origin. To produce a reflection (inversion) in a point other than the origin: translate by the negative of the coordinates of the point, then reflect in the origin, then translate by the coordinates of the point. In this example the model is reflected in the point (0.2,0,0).

View this model with the command

off_color -r A0.2,f J33 > orig.off
off_trans -T -0.2,0,0 -I -T 0.2,0,0 J33 | antiview -C 0,0,0 - orig.off

  previous     Medium    Large    next
inv_pt_1.jpg  17KB JPEG image, 535 x 401 pixels
