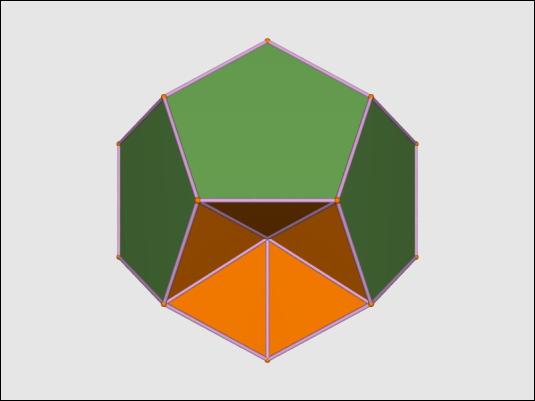

Description : The -F option aligns a face on the brick with a face on the base and then uses it to augment or excavate the base model (the polyhedra are joined and the bonding faces removed) It may be possible to align the face in various ways, the third number selects from these possibilities, with the first possibility being 0. In this example the base polygon of a pentagonal pyramid is aligned with a face of a dodecahedron. An alignment number is chosen that causes the pyramid to lie inside the dodecahedron, producing an excavation. As the result is a single polyhedron the whole polyhedron will be output.

View this model with the command

off_align -F pyr5,3,0,5 dodecahedron  | antiview
