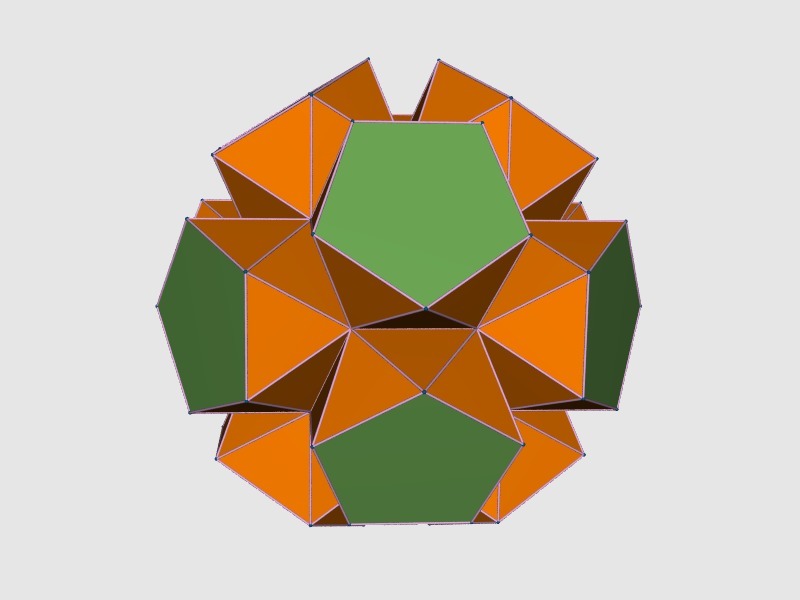

Description : The -F option aligns a face on the brick with a face on the base and then uses it to augment or excavate the base model (the polyhedra are joined and the bonding faces removed) It may be possible to align the face in various ways, the third number selects from these possibilities, with the first possibility being 0. In this example a base polygon of a pentagonal antiprism is aligned with a face of a dodecahedron. The default alignment causes the antiprism to lie outside the dodecahedron, producing an augmentation. The bonding operation is repeated with the symmetry of the base model by specifying -y full.

View this model with the command

off_align -F ant5 -y full dodecahedron  | antiview
  previous     Medium    Large    next
align_F_3.jpg  40KB JPEG image, 800 x 600 pixels
