Align v6 thumbnails
tree :: Antiprism Examples and Visual Reference > Program Examples > Programs: off_align > Align v6 Image List

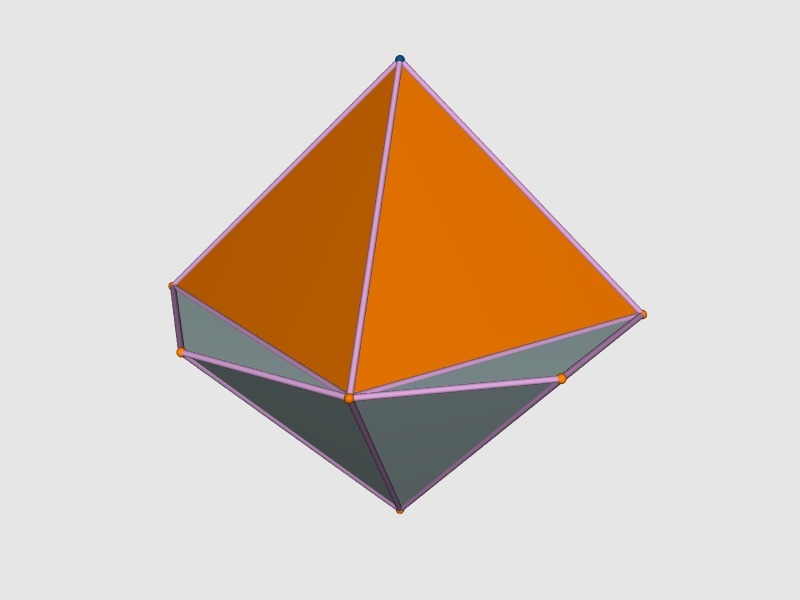

Description : The -v option with six numbers matches three vertices on the brick (second set of three index numbers) with three on the base (first set of three index numbers) by a translation to align the first pair of vertices, then a rotation to align the second pair, then a rotation about the line joining these two vertices to align the third pair of vertices. In this example a square pyramid has three verices on its face aligned with those of an ictagonal pyramid. Notice that the base polyhedron in the off_align command is read from standard input.

View this model with the command

polygon pyr 8 | off_trans -R 0,0,10 -R 110,0,0 | off_align -v pyr4,0,2,3,2,1,0 -M 2 | antiview

  previous     Medium    Large    next
