tree :: Antiprism Examples and Visual Reference > Program Examples > Programs: geodesic > Planar Image List

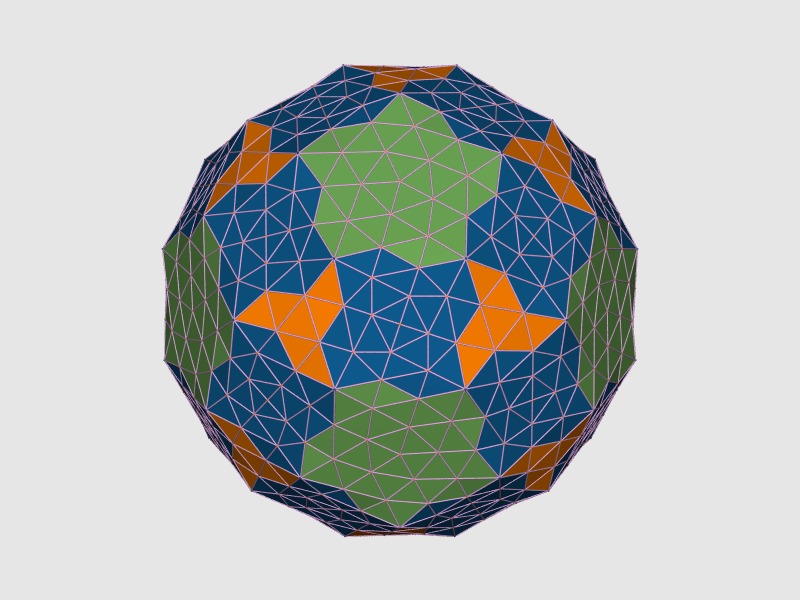

Description : The following example is a planar Class III 2,1 rhombicosidodecahedron. The square and pentagonal faces are first converted to triangles by joining a face's edges to its centre. The geodesic subdivision is applied to this base model. In the planar models the subdivision is based on dividing the original edges by equal length (as opposed to equal central angle in the spherical models), and the models are not projected onto a sphere afterwards.

View this model with the command

geodesic -M p -c 2,1 u_rhombicosi | antiview -v 0.01

  previous     Medium    Large    next
planar.jpg  91KB JPEG image, 800 x 600 pixels
